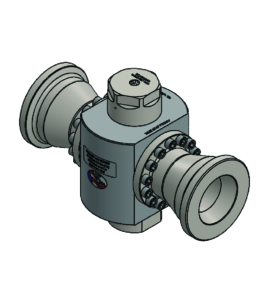

Premier 50300DL Series

High Flow, Dome Loaded, Single Stage, Pressure Reducing Regulator

Premier 50300DL Series dome loaded, single stage, high flow, piston sensed, pressure reducing regulators, rated for inlet and outlet pressures up to 6000 PSIG /413.7 bar (dependent upon configuration), and Cv 30.0. The 50300DL features an externally loaded 1:1 dome load. Optional external sensing port for improved accuracy.

  • Flow capacity (Cv): 30.0

  • 6000 PSIG (413.7 bar) max inlet pressure

  • 1:1 dome load

  • Optional external sensing port

  • Economical pricing

  • Machined bar stock body eliminates porosity found in castings

  • Private label
Catalog Page / Data Sheet

Technical data and specifications
