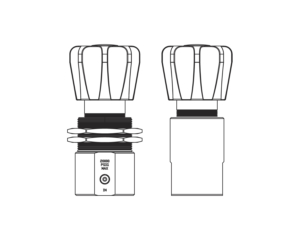

Premier 6125 Series

High Pressure (20K), Hydraulic, Back Pressure Regulator

High pressure, hydraulic Premier 6125 Series back pressure regulators are single stage, piston sensed regulators rated for inlet and outlet pressures up to 20000 PSIG (1378.95 bar), and Cv 0.03, 0.06, 0.14, or 0.20.

  • Rated for pressures up to 20000 PSIG (1378.95 bar)
  • Flow capacity (Cv): 0.03, 0.06, 0.14, or 0.20
  • Fluted knob with ball-bearing loader
  • Machined bar stock body, bonnet and piston eliminates porosity found in castings
  • Surface mount

  • Panel mounting nuts (P/N: 30-10145-02)
