VALVES
AO 0.20 VALVES
Premier AO 0.20 Series Air Operated Valves are available in both normally open and normally closed configurations for use with gas or hydraulic media. The AO 0.20 Series is rated for inlet pressures up to 20000 PSIG (1379 BAR), and (Cv) 0.20.
AO 0.80 VALVES
Premier AO 0.80 Series Air Operated Valves are available in both normally open and normally closed configurations for use with gas or hydraulic media. The AO 0.80 Series is rated for inlet pressures up to 10000 PSIG (689.5 BAR), and (Cv) 0.80.
AO 2.0 VALVES
Premier AO 2.0 Series Air Operated Valves are available in both normally open and normally closed configurations for use with gas or hydraulic media. The AO 2.0 Series is rated for inlet pressures up to 10000 PSIG (689.5 BAR), and (Cv) 2.0.
AO 5.0 VALVES
The Premier AO 5.0 Series air-operated valves are normally closed, high-pressure valves designed for use with gas or hydraulic media. AO 5.0 Series valves are rated for inlet pressures up to 7500 PSIG (517.1 BAR) and Cv 5.0.
AO32 0.80 SERIES, 3-WAY 2-POSITION, PNEUMATICALLY OPERATED, HIGH PRESSURE VALVE
Premier AO32 0.80 Series 3-way 2-position valves control the flow of media by connecting two of the three process ports.
AO32 2.0 SERIES, 3-WAY 2-POSITION, PNEUMATICALLY OPERATED, HIGH PRESSURE VALVE
Premier AO32 2.0 Series 3-way 2-position valves control the flow of media by connecting two of the three process ports.

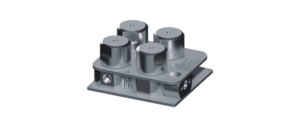

AO 2.0 QUAD PACK, PNEUMATICALLY OPERATED VALVE ASSEMBLY
The Premier AO 2.0 quad pack integrates four air-operated high-pressure valves into a single modular assembly, rated for operating pressures up to 10000 PSIG (689.5 BAR) and Cv 2.0. This assembly is engineered to maintain continuous system operation by reducing single points of failure, while optimizing space and increasing labor efficiency.
70 0.42A SERIES, HIGH PRESSURE, SHUT OFF VALVES
Premier 70 0.42A Series shut off valves are stainless steel, high pressure valves rated for pressures up to 10000 PSIG, and Cv 0.42. 70 0.42A Series valves support the flow of a liquid or gas in an angle configuration
70 0.42G SERIES, HIGH PRESSURE, SHUT OFF VALVES
Premier 70 0.42G shut off valves are stainless steel, high pressure valves rated for pressures up to 10000 PSIG. 70 0.42G Series valves support the flow of a liquid or gas in a globe configuration.
70 1.60G SERIES, HIGH PRESSURE, SHUT OFF VALVES
Premier 70 1.60G Series shut off valves are stainless steel, high pressure valves rated for pressures up to 10000 PSIG (689.5 BAR) and Cv 1.6. 70 1.60G Series valves support the flow of a liquid of gas in a globe configuration.
70 2.30A SERIES, HIGH PRESSURE, SHUT OFF VALVES
Premier 70 2.30A Series shut off valves are stainless steel, high pressure shut off valves rated for pressures up to 10000 PSIG and Cv 2.3 MAX (dependent on configuration). Premier 70 2.30A valves support the flow of a liquid or gas in an angle configuration.
70 8.00G SERIES, HIGH PRESSURE, HIGH FLOW, SHUT OFF VALVES
70 8.00G Series shut off valves are stainless steel, high pressure valves rated for pressures up to 6000 PSIG (413.69 BAR) and Cv 8.0. 70 8.00G valves support the flow of a liquid or gas in a globe configuration.

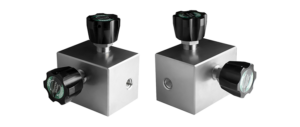

70AB SERIES, HIGH PRESSURE, SHUT OFF VALVES
Premier 70AB Series shut off valves are stainless steel, high pressure shut off valves rated for pressures up to 10000 PSIG. The bleed/vent valve enables users to bleed pressures downstream down to zero.
STAINLESS STEEL SHUT OFF VALVES
The Premier Stainless shut-off valves are part of a family of manual, high pressure, shut off valves. These valves features a stainless steel body, soft seat, 17-4 stainless steel valve stem, and a flow Cv of 0.25. Optional integrated burst disks, and relief valves are available.
MINIATURE SHUT OFF VALVES
Premier miniature shut-off valves are part of a family of manual, high pressure, shut off valves. This valve features a metal seat (SAE 360 Brass), 303 stainless steel valve stem, Cv of 0.25, compact size, and reliability at an economical cost.
EXCESS FLOW PREVENTION VALVES
Premier Excess Flow Prevention Valves are unique factory adjustable gas valves designed to automatically shut off the flow of gas when flow exceeds a preset level. These valves are designed to protect systems and/or people in the event of a line failure down the stream from a valve. After a valve has tripped it can be reset with a convenient integrated bypass valve or reset slider that will allow users to quickly get their systems back up and running (after repairing the leak which caused the valve to trip).
FLOW SIGHT TUBE VALVES
The Premier flow sight tube valves feature a needle style, flow control/shut off valve, acrylic housing, and a variety of connections.
RELIEF VALVES
Premier relief valves are design to protect your system from over pressurization. Reliable preset relief pressures between 500-1800 psig (34.47-124.11 bar).
1/4″ MNPT to C10 SHUT OFF VALVES
These shut off valves feature a 1/4″ MNPT inlet connection, C10 outlet connection, 303 stainless steel body and Viton® seals.
