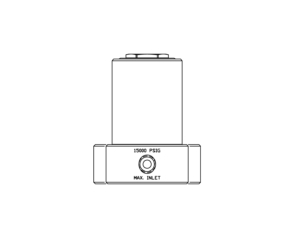

PREMIER 3023DL SERIES

High Pressure, Dome Loaded, Single Stage, Pressure Reducing Regulator

Premier 3023DL Series pressure reducing regulators are dome loaded, high pressure, piston sensed, pressure reducing regulators, designed for inlet pressures up to 15000 PSIG (1034.21 bar) and Cv 0.06, 0.12, or 0.2. Captured venting allows fluids/gases to be safely piped away.

  • Captured venting
  • 15000 PSIG (1034.21 bar) max inlet
  • Outlet pressures up to 15000 PSIG
  • 1:1 load ratio
  • Piston: Ø1.125
  • Cv 0.06, 0.12, or 0.2.
  • Machined bar stock body, bonnet and piston eliminates porosity found in castings

  • Private label

  • Panel mounting bracket (P/N: 30-10059)

  • Surface mount

  • Port type uniform
